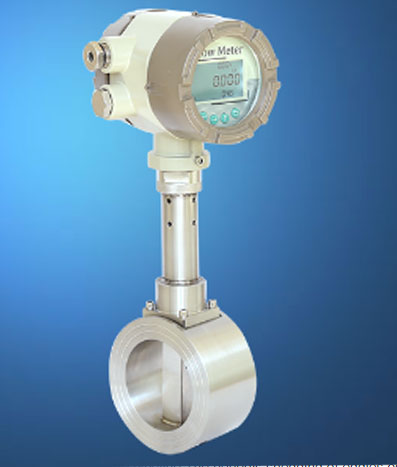

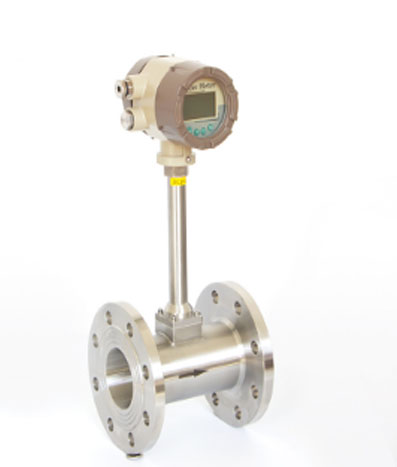

Vortex Flow Meter LUGB
■ ASIC large scale integrated circuit design, small size;
■ Low current offset≤ 50uV，temperature drift<1uV/°C;
■ Programmable filter for aperiodic vibration remove;
■ Intelligent control, no need to manual debugging;
- Description
-
Description
-
The vortex flow meter is used for measuring the flow velocity of gases or liquids in pipelines flowing full. The measuring principle is based on the development of a Karman vortex shedding street in the wake of a body built into the pipeline The periodic shedding of eddies occurs first from one side and then from the other side of a bluff body (vortex-shedding body) installed perpendicular to the pipe axis. Vortex shedding generates a so-called "Karman vortex street" with alternating pressure conditions whose frequency is proportional to the flow velocity.
-
Model Selection
Application range |
(1)Gas;(2)Liquid;(3)Steam |
Measured Value |
|
Primary measured value |
Flow Rate |
Secondary measured value |
Volume flow; |
Temperature |
|
Process Temperature |
T1 Level:-20...+100℃ |
T2 Level:-20...+250℃ |
|
T3 Level:-20...+350℃ |
|
Ambient Temperature |
-10...+70℃ |
Pressure |
|
EN 1092-1 |
DN200…DN300: PN10 |
DN100…DN200: PN16 |
|
DN15…DN80: PN25 |
|
Other pressures on request |
|
ASME B16.5 |
1/2"…8":150lb RF |
Other pressures on request |
|
JIS |
1/2"…8": 10K |
Other pressures on request |
|
Reference conditions |
Flow conditions similar to EN 29104 |
Medium: Water/Gas/Steam |
|
Electrical conductivity:≥300uS/cm |
|
Temperature: -10…+30℃ |
|
Inlet section:≥10 DN |
|
Operating pressure: 1bar/14.5 PSIG |
|
Flow Meter Accuracy |
For Liquid: 1.0% of Rate |
For Gas and Steam: 1.5% of Rate |
|
Body Material |
SS304 |
SS316 |
|
Converter Material |
Standard: Polyurethane coated die-cast aluminum |
| Model | LUGB | Description | |||||||
| Fluid | L | Liquid | |||||||
| G | Gas / Ar | ||||||||
| S | Steam | ||||||||
| Diameter | XXX | DN15-DN300 | |||||||
| Structure | S | Compact | |||||||
| L | Remote | ||||||||
| Converter Type | N | 24V DC; Pulse output; No display; Ex | |||||||
| A | 24V DC; 4-20 mA output; Pulse output;No display; Ex | ||||||||
| B | Battery power supply; No output; Ex; | ||||||||
| C | 24V DC; 4-20 mA output / Pulse output; | ||||||||
| V | 24V DC; 4-20mA output / Pulse output (A type is only for Gas / Steam appliction) | ||||||||
| D | 24V DC; 3-wire 0-20mA output; Temperature & Pressure Compensation | ||||||||
| Notice: | 1)Modbus RS485 is optional for C,V,D series | ||||||||
| 2)Dual Power(24VDC+Battery) is optional for C,V,D series | |||||||||
| Body Material | S4 | SS304 | |||||||
| S6 | SS316 | ||||||||
| Explosion Proof | BT | Exd II BT6 | |||||||
| CT | Exd II CT4 | ||||||||
| NA | No explosion proof | ||||||||
| Connection | WAF | Wafer connection | |||||||
| DXX | D16: DIN PN16 flange; D25: DIN PN25… | ||||||||
| AXX | A15: ANSI 150# flange; A30: ANSI 300#... | ||||||||
| JXX | J10: JIS 10K flange; J20: JIS 20K… | ||||||||
| Temperature | T1 | -20...+100 °C | |||||||
| T2 | -20...+250 °C | ||||||||
| T3 | -20...+350 °C | ||||||||
