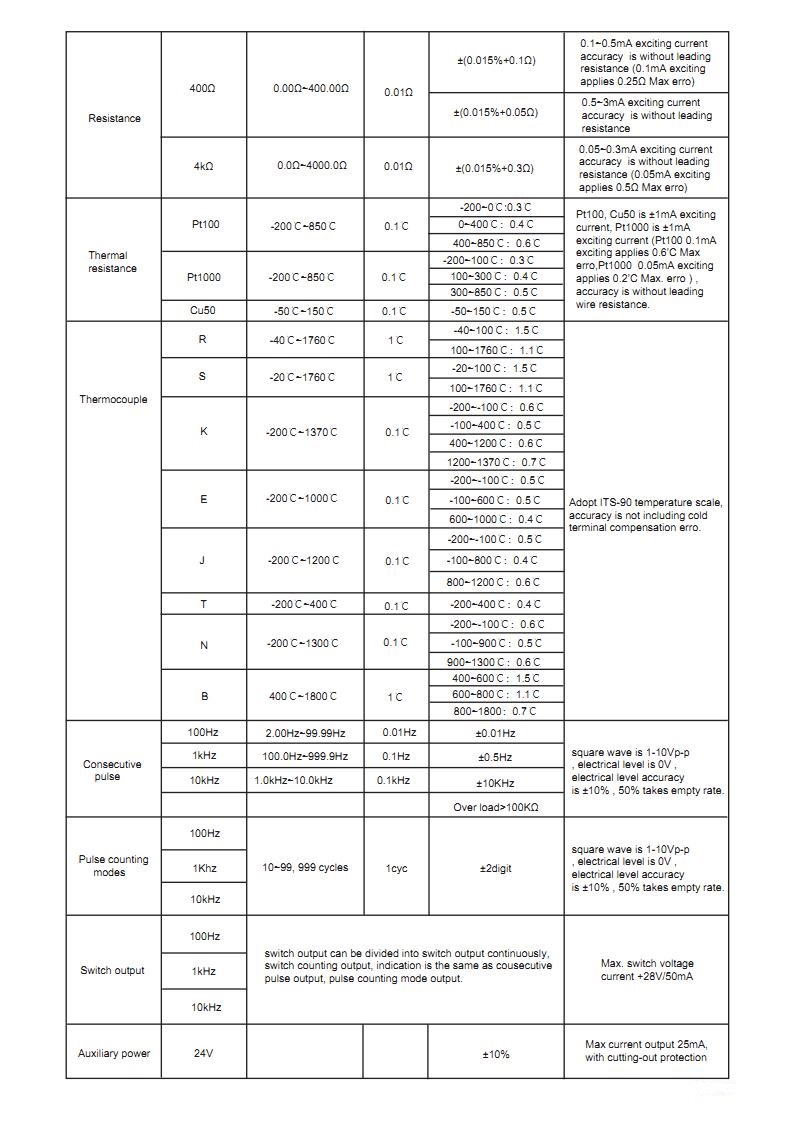

Output signals :
1. DC V : 3 gears : -10.00mv-110.00mV , 0-1.2000V , 0-12.000V
2. DC mA: 2 ampere mode : output (mA source) , analog output ( mA sink)
3. Ω : 2 gears : 0 -400.00Ω, 0 - 4000.0Ω
4. RTD: PT100 , PT1000 , CU50
5. TC: R , S, K , E, J, T , N , B
6. Pulse: Continuous pulse output 2.0Hz-100.0Hz, 100Hz-1000Hz , 1.0kHz-10.0kHz
Pulse couting mode output 10-99,999 cycles
7.Switch ouput: switch continuous output 2.0Hz-100.0Hz, 100Hz-1000Hz , 1.0kHz-10.0kHz
Switch counting mode output 10-99,999 cycles
8. External power supply : 24V , Maxmimum output current 25mA , with Short circuit protection function.
