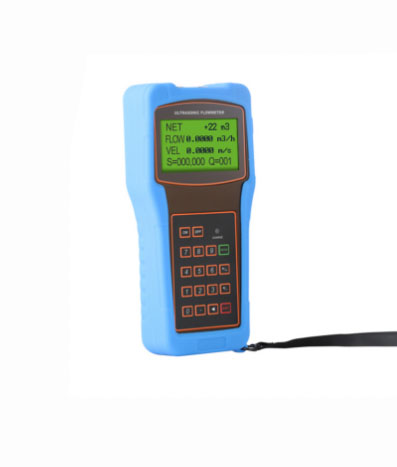

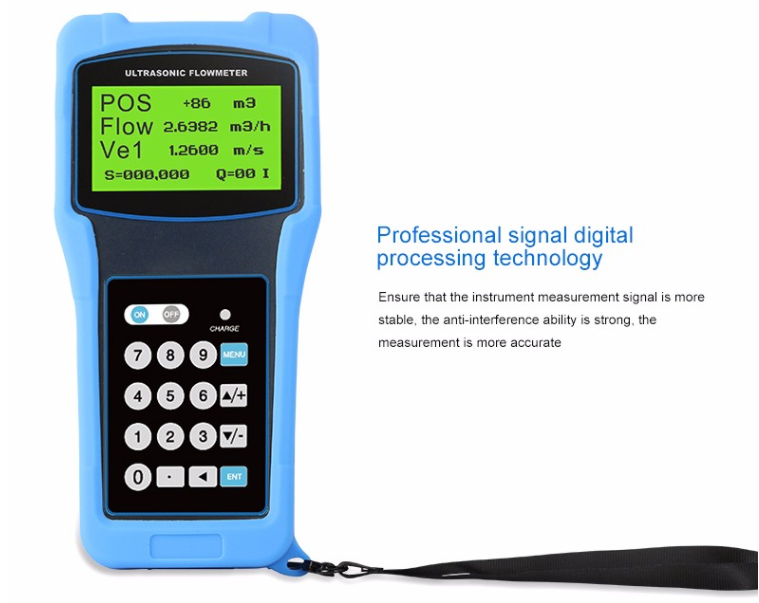

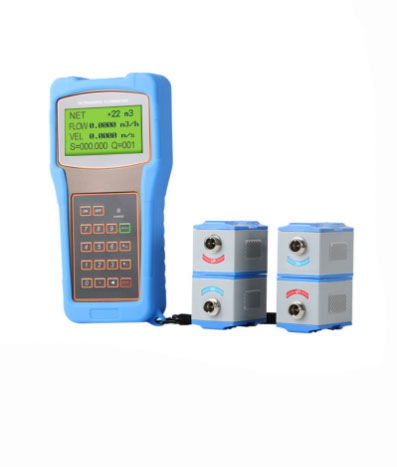

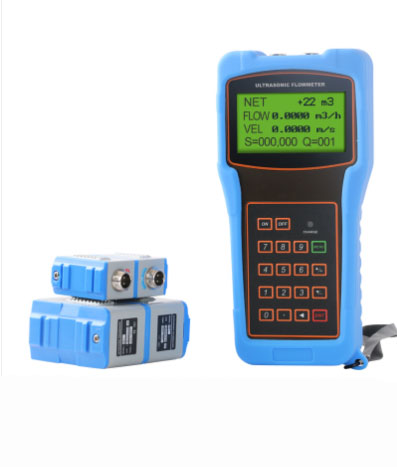

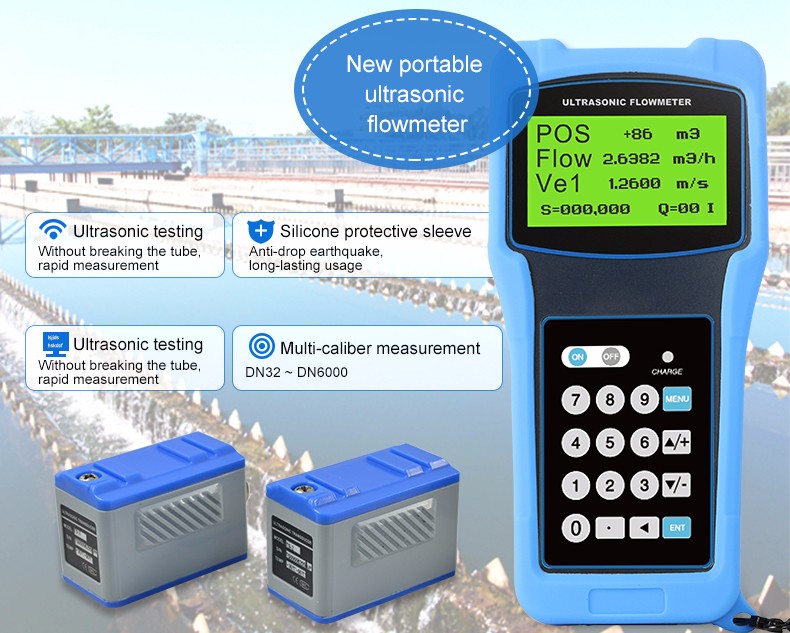

SUP-2000H handheld ultrasonic flow meter
SUP-2000H ultrasonic flow meter uses advance circuit design,coupled with excellent hardware designed in English and can be switched surfaces.It is easy to operate and with stable performance
- Description
SUP-2000H handheld ultrasonic flowmeter uses advanced circuit design coupled with excellent hardware designed in English for liquid flow detection and comparison testing in pipes. It has the characteristics of simple operation, convenient installation, stable performance and long lasting life.
Linearity |
0.5% |
Repeatability |
0.2% |
Accuracy |
±1% of reading at rates>0.2 mps |
Response Time |
0-999 seconds, user-configurable |
Velocity |
±32 m/s |
Pipe Size |
20mm-6000mm |
Totalizer |
7-digit totals for net, positive and negative flow respectively |
Liquid Types |
Virtually all liquids |
Security |
Setup values Modification Lockout. Access code needs unlocking |
Display |
4x8 Chinese characters or 4x16 English letters |
Communication Interface |
RS-232, baud-rate: from 75 to 57600. Protocol made by the manufacturer and compatible with that of the ultrasonic flow meter. User protocols can be made on enquiry. |
Transducer Cord Length |
Standard 5m x 2, optional 10m x 2 |
Power Supply |
3 AAA built-in Ni-H batteries. When fully recharged it will last over 12 hours of operation. 100V-240VAC for the charger |
Data Logger |
Built-in data logger can store over 2000 lines of data |
Manual Totalizer |
7-digit press-key-to-go totalizer for calibration |
Housing Material |
ABS |
Case Size |
100 x 66 x 20mm |
Handset Weight |
500g with batteries |
