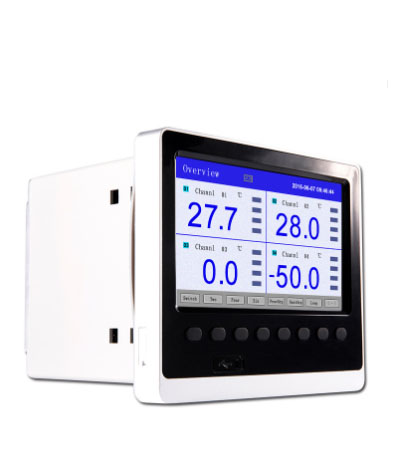

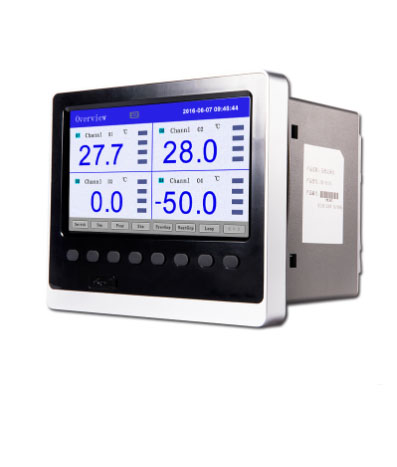

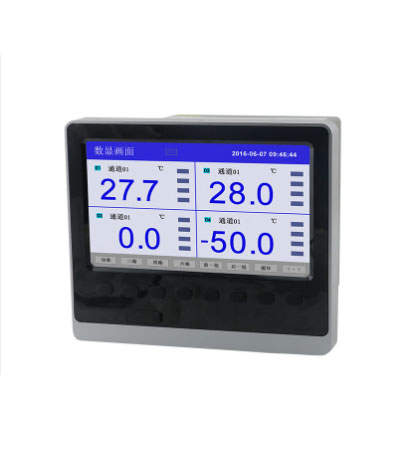

SUP-R6000C Paperless recorder
SUP-R6000C Color paperless recorder with fixed point/program segment adopts the control algorithm of differential in advance. The proportional band P, integral time I and derivative time D are mutually independent of each another without affecting each other when being adjusted. The system overshoot can be controlled with strong anti-jamming capability.
- Description
SUP-R6000C paperless recorder is equipped with 24-channel universal input (able to input by means of configuration: standard voltage, standard current, thermocouple, thermal resistance, frequency, millivolt, etc.). It can be equipped with 8-loop control and 18-channel alarm output or 12-channel analog output, RS232/485 communication interface, Ethernet interface, mini-printer interface, USB interface and SD card socket; it can provide sensor distribution; it owns powerful display function, real-time curve display, real-time control display historical curve retrospection, bar graph display, alarm status display, etc.
Input measurement |
|
Input signal |
Current: 0 ~ 20 mA, 0 ~ 10 mA, 4 ~ 20 mA, 0 ~ 10 mA SQRT, 4 ~ 20 Ma SQRT Voltage: 0 ~ 5 V, 1 ~ 5 V, 0 ~ 10 V, ±5 V, 0 ~ 5 V SQRT, 1 ~ 5 V SQRT, 0 ~ 20 mV, 0 ~ 100 mV, ±20 mV, ±100 mV Thermal resistance: Pt100, Cu50, Cu53, Cu100, BA1, BA2 Linear resistance: 0 ~ 400 Ω Thermocouple: B, S, K, E, T, J, R, N, F2, Wre3-25, Wre5-26 |
Output |
|
Output signal |
Analog output: 4 ~ 20 mA (load resistance ≤ 380 Ω), 0 ~ 20 mA (load resistance ≤ 380 Ω), 0 ~ 10 mA (load resistance ≤ 760 Ω), 1 ~ 5 V (load resistance ≥250 KΩ), 0 ~ 5 V (load resistance ≥250 KΩ), 0 ~ 10 V (load resistance ≥10 KΩ) |
Alarm output: normally open relay contact output, where the contact capacity is 1 A/250 VAC (resistive load) (! Note: Please do not carry load directly in case the load exceeds the contact capacity of relay.) |
|
Feed output: DC24 V ± 1, load current ≤ 250 mA |
|
Communication output: RS485/RS232 communication interface, 1,200 ~ 57,600 bps baud rate (able to be set); standard MODBUS RTU communication protocol is adopted; the communication distance of RS-485 can be as long as 1 kilometer; the communication distance of RS-232 can be as long as 15 m; EtherNet communication interface is adopted, where the communication speed is 10 M. |
|
Comprehensive parameters |
|
Measurement accuracy |
0.2% FS ± 1d |
Sampling period |
1 s |
