Heat Meter
Plug and play. All parameters are pre-configured in factory;
■ Bi-directional;
■ Standard output: 4-20mA, pulse;
- Description
-

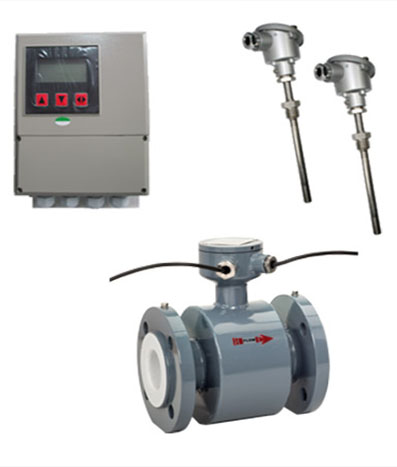

Electromagnetic heat meter is a thermal conversion system contains the heat released by the hot fluid measurement instruments measure. It uses a high precision, high reliability magnetic flow meter with platinum RTD for temperature so that the heat meter has very excellent measurement performance. It can be widely used in metering residential quarters office building s and enterprises, centra heating, heating, air conditioning heat.
-
Model Selection
-
Description
| Model | LDGH | Description | ||||||||||
| Type | Pt100 | Pt100 temperature sensors | ||||||||||
| Pt1000 | Pt1000 temperature sensors | |||||||||||
| Diameter | XXXX | DN6-DN2200 | ||||||||||
| Structure | S | Compact Type with local disply | ||||||||||
| L | Remote Type;10meters cable default | |||||||||||
| Electrode Material | M | SS316L | ||||||||||
| T | Titanium | |||||||||||
| D | Tantalum | |||||||||||
| H | Hastelloy Alloy C | |||||||||||
| P | Platiniridium | |||||||||||
| Signal Output | 0 | No Output | ||||||||||
| 1 | 4-20mA/Pulse | |||||||||||
| Liner Material | X | Hard Rubber | ||||||||||
| P | Propylene Oxide | |||||||||||
| F | PTFE | |||||||||||
| A | PFA | |||||||||||
| Power Supply | -0 | 110-240Vac | ||||||||||
| -1 | 24V DC(20-36V DC) | |||||||||||
| -2 | Battery Power Supply | |||||||||||
| Communication | 0 | No Communication | ||||||||||
| 1 | Modbus RS485 | |||||||||||
| 2 | HART | |||||||||||
| 3 | GPRS | |||||||||||
| 4 | Profibus DP | |||||||||||
| Sensor Grounding | 0 | No Grounding | ||||||||||
| 1 | Grounding Ring | |||||||||||
| 2 | Grounding Electrode | |||||||||||
| Connection | DXX | D16:DIN PN16 Flange; D25: DINPN25;… | ||||||||||
| AXX | A15: ANSI 150# Flange; A30: ANSI 300#… | |||||||||||
| JXX | J10: JIS 10K Flange; J20: JIS 20K… | |||||||||||
| XXX | On request | |||||||||||
| Body Material | CS | Carbon steel | ||||||||||
| S4 | Stainless steel 304 | |||||||||||
| S6 | Stainless steel 316 | |||||||||||
