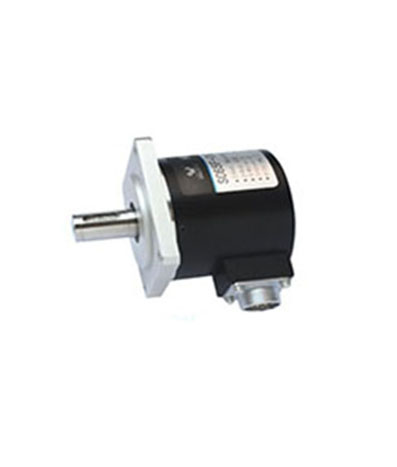

Incremental type (general type, solid shaft)
External dimensions : Small volume, external diameter : Φ65mm(flange68*68) , thickness : 59mm
diameter of shaft : Φ15mm , key way : 5*5mm
Connect type :Cable out from side(with metal sleeve)
Output mode : Opencollector output,voltage output,push-pull output,Long ling drive
Resolution : up to 5000P/R
Supply voltage : DC5V&DC12V-24V
Protection : IP50 & IP65
Cable length : 1M
Crust : aluminum
Weight : about 590g (with package)
