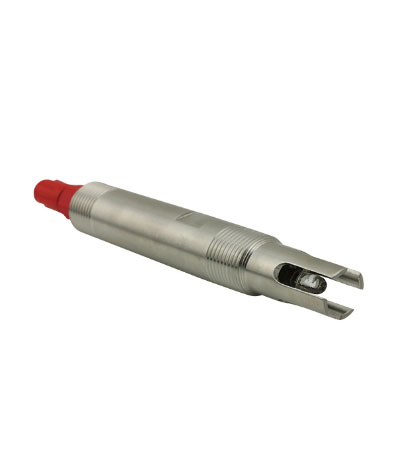

SUP-pH-5050 high temperature glass electrode
SUP-pH-5050 high temperature glass electrode used in PH measurement is also called primary cell. The primary battery is a system whose function is to convert chemical energy into electrical energy. The voltage of this battery is called electromotive force (EMF). This electromotive force (EMF) consists of two half-cells.
- Description
- Installation
- Order lnformation
| Model | SPE-PH5050 |
| PH range | 0～14 |
| Temperature | 0～120℃ |
| Safety Pressure | 0.6(Mpa) |
| Connect mode | Cable |
| Internal resistance | ≤250 MΩ(25℃) |
| Zero potential | 7±0.4 |
Schematic diagram of common installation method
①Side wall installation ②Flange mounted at the top ③Pipe installation ④Top installation ⑤Submersible installation ⑥Flow-through installation
The interface must be in 15°oblique angle, or it will affect the normal test and use of the electrode. We won’t be responsible for any results due
