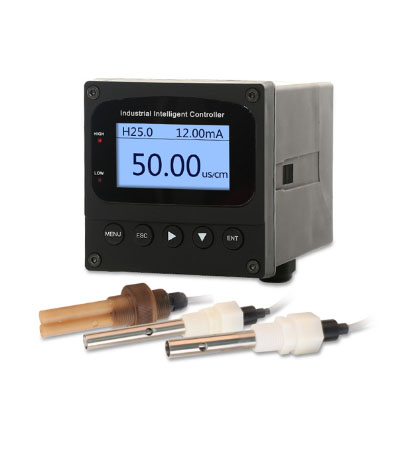

SUP-TDS210 Online Conductivity/Resistivity analyzer, an intelligent Online chemical analyzer, is widely applied for continuous monitoring and measurement of EC value or TDS value or EC value and temperature in the solution in the industry of thermal power, chemical fertilizer, environmental protection, metallurgy, pharmacy, biochemistry, food and water, etc. Conductivity meter continuous monitoring measurement data is connected with the recorder via transmitting output to realize remote monitoring and recording. It can also be connected with RS485 portal via MODBUS-RTU protocol to access computer for monitoring and recording.



Isolating transmitting output, with little interference.

■ Isolating RS485 communication.

■ EC/TDS measurement, temperature measurement,

     top/bottom limit control, transmitting output, RS485      communication.

■ Configurable manual and auto temperature offset function.

■ Configurable upper/lower limit warning and delay.

■ Configurable hummer and LCD backlight switch.

■ Addition of universal password.

■ Industrial controlled door keep, to avoid instrument halted.



Configurable isolating transmitting 4-20mA output,      max.loop750Ω, 0.1%FS.

■ Conventional range controller Measuring range:

  ·0.01 electrode: 0.02～20.00us/cm or 0.00～20.00mΩ*cm

  ·0.1 electrode: 0.2～200.0us/cm

  ·1.0 electrode: 2～2000us/cm

  ·10.0 electrode: 0.02～20ms/cm

  ·30.0 electrode: 0.06～60ms/cm

■ Large range controller Measuring range:

  ·0.01 electrode: 0.2～200.0us/cm

  ·0.1 electrode: 2.0～2000us/cm

  ·1.0 electrode: 0.02～20ms/cm

  ·10.0 electrode: 0.2～200ms/cm

  ·30.0 electrode: 0.6～600ms/cm

■ Accuracy: ±1%FS   Stability: ±1%FS/24H

■ Temperature measuring range:-10-130℃, accuracy: ± 0.5℃, NTC10K or PT1000 temperature offset

■ RS485 function: compactible with standard

     MODBUS-RTU communication protocol

■ Supply power:AC220V±10%,50Hz/60Hz

■ Warning relay:AC250V,3A

■ Implementation of standards：JB/T 6855-1993

■ 2.4 inches 128*64 lattice screen.
